段码式LCD驱动IC系列

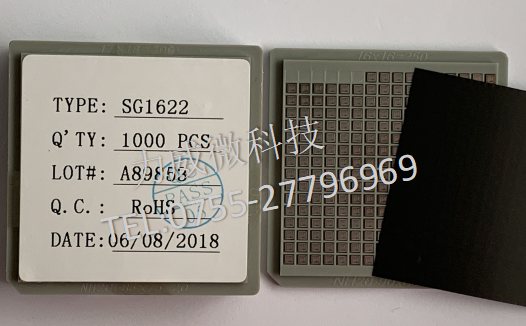

SG1622
Description
SG1622 is a LCD controller with 32x8 memory mapping driver. It is especially designed for low
power operation, extra timer function, and simple control interface and so on. These make SG1622 most
suitable for the MCU application.
Features
◆ Operating voltage: 2.7V~5.2V
◆ 1/4 bias, 1/8 duty, frame frequency is 64Hz
◆ Max. 32?8 patterns, 8 commons, 32 segments
◆ Built-in internal resistor type bias generator
◆ 3-wire serial interface
◆ 8 kinds of time base or WDT selection
◆ Time base or WDT overflow output
◆ Built-in LCD display RAM
◆ R/W address auto increment
◆ Two selectable buzzer frequencies (2kHz or 4kHz)
◆ Power down command reduces power consumption
◆ Software configuration feature
◆ Data mode and Command mode instructions
◆ Three data accessing modes
◆ VLCD pin to adjust LCD operating voltage
◆ Built-in RC oscillator
  • 详细介绍
  • 资料下载
  • 样品申请
Description
SG1622 is a LCD controller with 32x8 memory mapping driver. It is especially designed for low
power operation, extra timer function, and simple control interface and so on. These make SG1622 most
suitable for the MCU application.
Features
◆ Operating voltage: 2.7V~5.2V
◆ 1/4 bias, 1/8 duty, frame frequency is 64Hz
◆ Max. 32?8 patterns, 8 commons, 32 segments
◆ Built-in internal resistor type bias generator
◆ 3-wire serial interface
◆ 8 kinds of time base or WDT selection
◆ Time base or WDT overflow output
◆ Built-in LCD display RAM
◆ R/W address auto increment
◆ Two selectable buzzer frequencies (2kHz or 4kHz)
◆ Power down command reduces power consumption
◆ Software configuration feature
◆ Data mode and Command mode instructions
◆ Three data accessing modes
◆ VLCD pin to adjust LCD operating voltage
◆ Built-in RC oscillator
